AT-01 HYBRID BEADLOCK MACHINED BLACK RING

AT-01 HYBRID BEADLOCK MACHINED BLACK RING

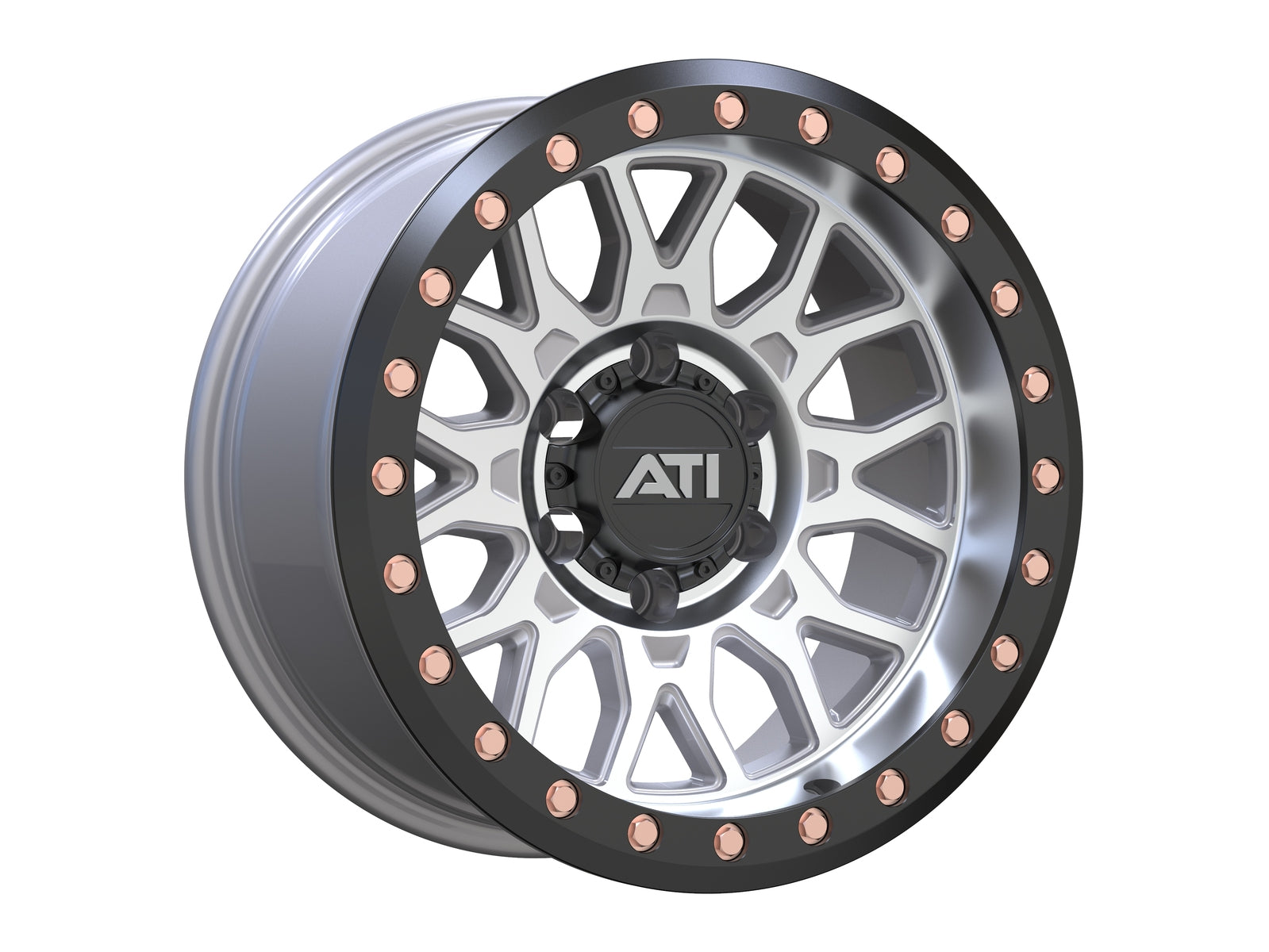

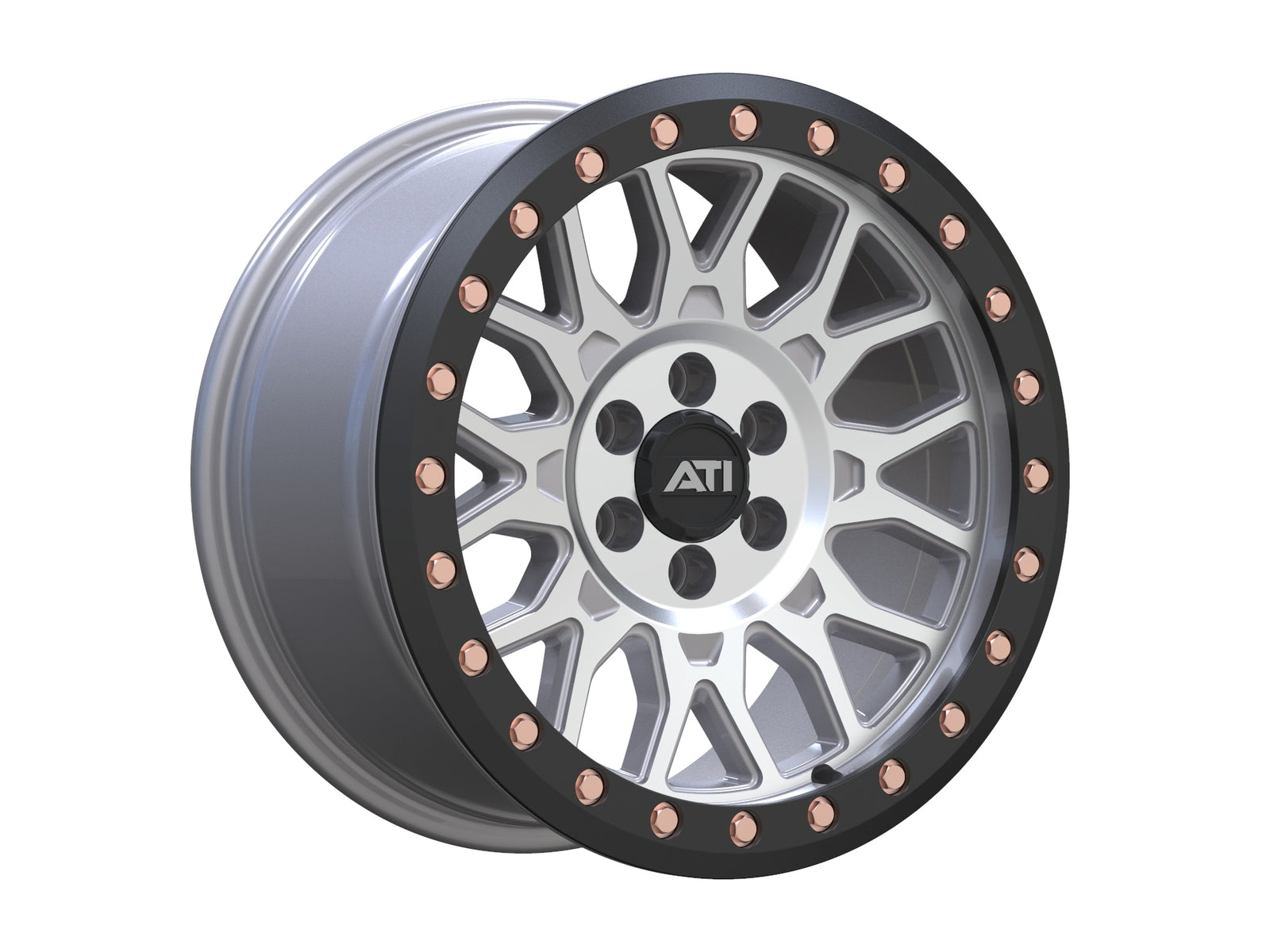

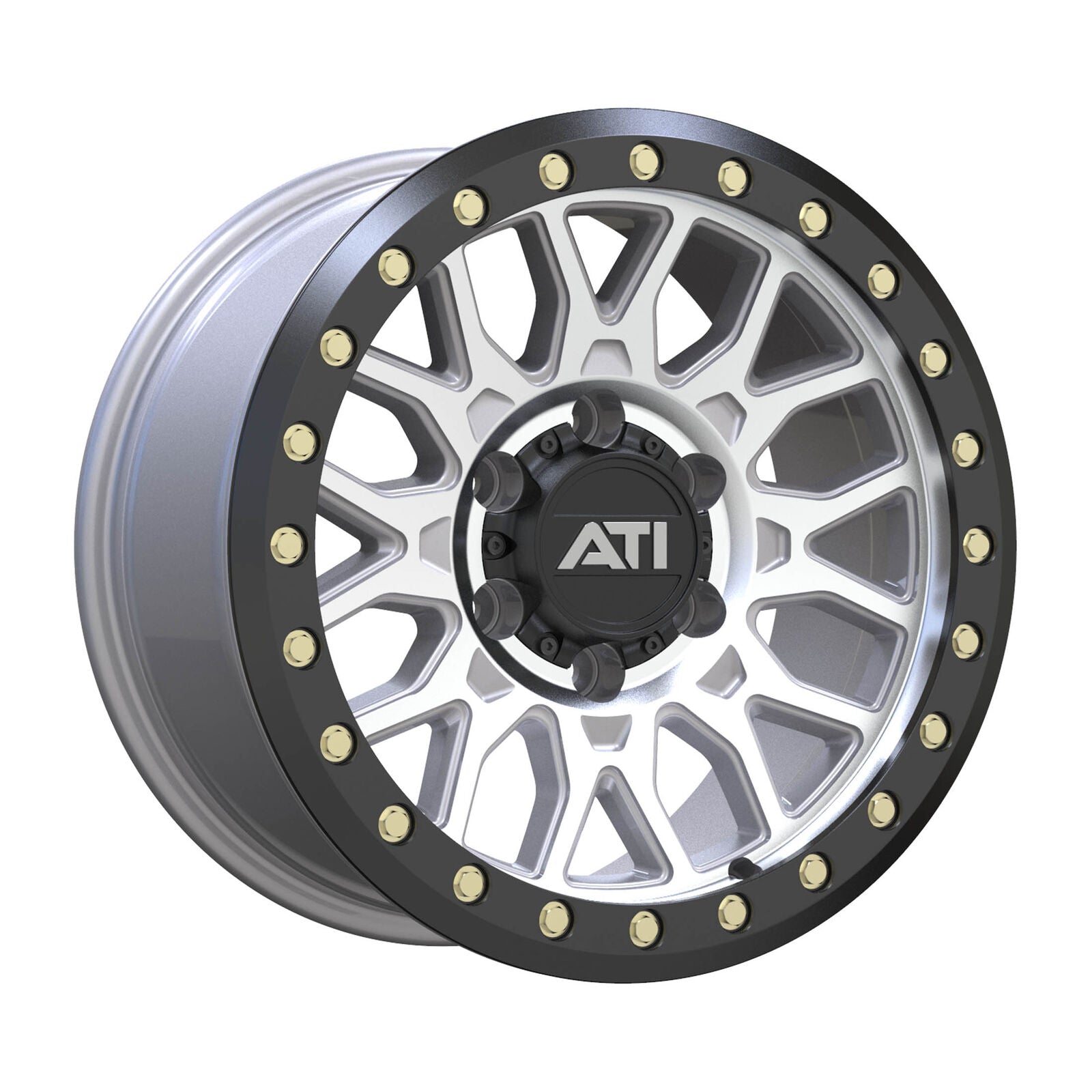

The AT-01 wheel features a hybrid beadlock design meaning multiple configurations are possible with the one wheel. A true beadlock ring option for those that like to run extremely low pressures Offroad, a simulated beadlock ring option for those who want to add some extra protection to their wheels or no ring for those that like a more simple look.

The AT-01 wheel is available in satin black, matte bronze or machined alloy finishes with the optional true and simulation beadlock rings available in the same three finishes.

Features:

• T6 Heat treated A356 aluminium construction
• Versatile hybrid beadlock design
• Recessed valve stem for added protection
• Branded ATI centre cap
• Lifetime structural warranty

Specifications:

• Size: 17x8.5
• Stud Pattern: 6x139.7
• Offset: -38 / -20 / 0 / +20 / +35
• Centre Bore: 110.15
• Load Rating: 1250kg

Specifications:

• Size: 17x8.5
• Stud Pattern: 6x114.3
• Offset: 0 / +20
• Centre Bore: 66.1
• Load Rating: 1250kg

Specifications:

• Size: 17x8.5
• Stud Pattern: 5x150
• Offset: -25 / +35
• Centre Bore: 110.15
• Load Rating: 1650kg
